Motor start PTC thermistor pellet

Price: 0.00

feature
1
high voltage endurance
2
good impact endurance
3
long life span
4
small residual current
5
low power
6
good flame-resisting
7
safe and reliable



application range
appliance
refrigerator,air conditioner
motor
hothouse of train
dryer
others

description

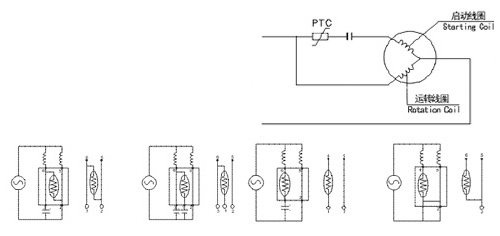

In single phase AC motor start circuit,PTC connects in series with auxiliary starting coil,which can break automatically after the motor accelerate,PTC protect the coil from damage
We can offer you many forms of packing case.



application



product list

type

value at 25

trip time

power passipation

restore time

insulation resistor

voltage endurance

max voltage

max current

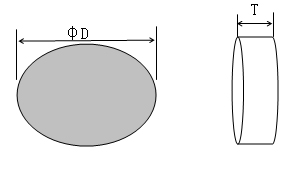

φDmax

(Ω)

S

W

S

MΩ)

VAC

VAC

A

(mm)

MZ924R7M

4.7(1±20%)

1.54

3.5

90

270

180

12

19.3

MZ92120M

12(1±20%)

0.71.5

3.5

100

500

350

8

19.3

MZ92150M

15(1±30%)

0.71.5

3.5

100

500

350

8

19.3

MZ92220M

22(1±20%)

0.41.2

3

80

500

300

7

19.3

MZ92300M

30(1±20%)

0.451.5

3.5

75

600

450

7

19.3

MZ92330M

33(1±20%)

0.451.35

3.3

65

500

355

6

19.3

MZ921000M

100(1±20%)

1.23

2

80

600

410

8

13.8

MZ921000N

100(1±30%)

1.23

4

70

600

410

8

19.3

The electronic parameter and size above only for reference,according to custo
